High-Speed Programmable Attenuator MAT800 Series

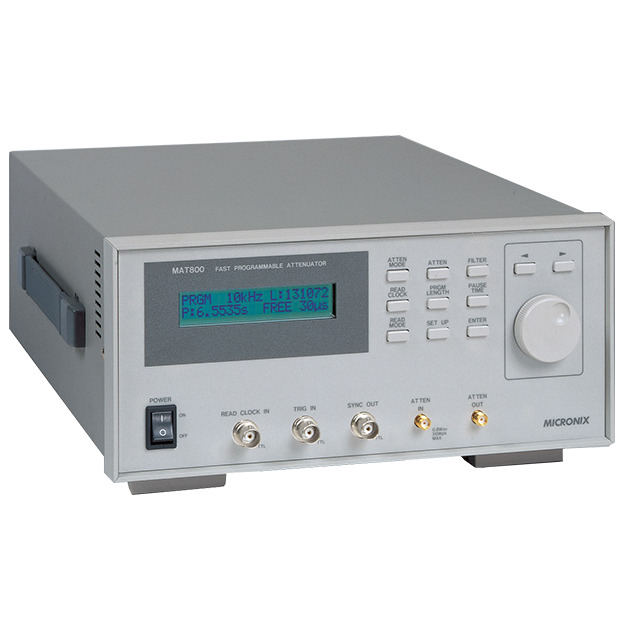

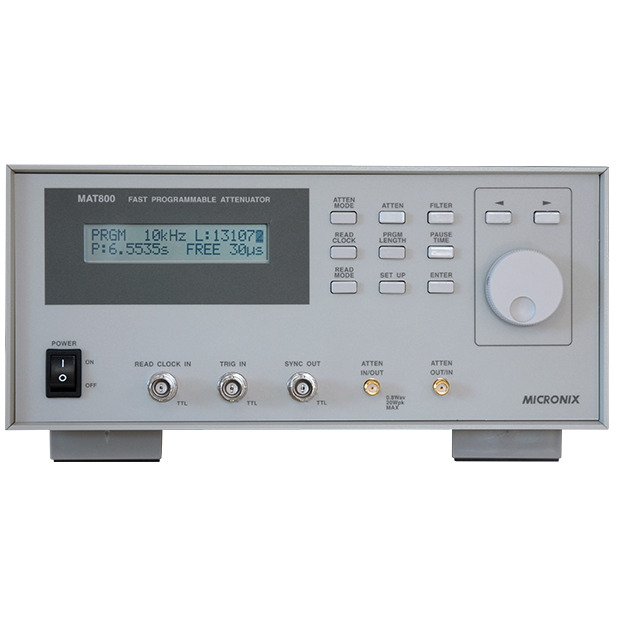

  • Photo:High-speed programmable Attenuator MAT800Series

    High-speed programmable Attenuator MAT800Seriesdownload

    • You can attenuation control at ultra-high speed.
    • Multi-functional and authentic programmable attenuator.
    • All models are electronic attenuators.

Features

  1. The arbitrary attenuation programs is possible.
    • Two methods are available for setup of attenuation, manual or program.
    • 128kwords built-in program memory.
    • Maximum 2μs switching (readout) speed.
    • Three readout modes of FREE, BURST and GATE.
    • Setup of hold off period by the number of clocks or by time.
  2. The software for making attenuation program is a standard accessory.
  3. Photo:プログラム画面

    Software for making attenuation program MAS800 (Standard accessory)

    • Waveform creation
      The nine types of standard waveforms are prepared like sine wave and triangle wave. A waveform is created by straight line input, arithmetic calculation input(addition, subtraction, clipping, offset and etc), one-point input and freehand line input by a mouse.
    • Waveform editing and file management
      Waveform editing and file management may be performed using CUT, COPY, PASTE and UNDO.
    Scroll
    Model Frequency range Attenuation Input Power
    (1dB compression)
    type
    Maximum Resolution
    MAT800-A 1.5 to 4.5GHz 80dB 0.05dB 100mW High-Speed Programmable Attenuator
    MAT800-B 3.0 to 9.0GHz
    MAT800-C 4.5 to 13.5GHz
    MAT800-D 1.95 to 5.85GHz
    MAT800-E 750MHz to 2.25GHz
  4. MaximumAttenuation80dB
  5. The minimum step size of attenuation is 0.05dB.

Correspondence table

Scroll
Application MAT800
A B C D E
Cellular phone1
(JPN/USA)
W-CDMA
HSDAPA
HSPA+
LTE
Cellular phone2
(JPN/USA)
cdma
cdma2000
Cellular phone3
(EUR/ASIA)
GSM
GPRS
EDGE
1xEV-D0
PHS
(JPN/ASIA)

Wireless LAN 2.4GHz
11/11b/11g/11n

5GHz
11a/11n

UWB 3.4 to 4.8GHz
@JPN

7.25 to 10.25GHz
@JPN

3.1 to 10.6GHz
@USA

Bluetooth
ZigBee
WiMAX・Mobil WiMAX 2.5GHz
3.5GHz
5.8GHz
GPS
1.57542GHz

RF-ID 900MHz
2.5GHz
ETC/DSRC
BS/CS
Digital broadcasting
Antenna
Reception Frequency
11.72748 to 13GHz

Converter
Intermediate Frequency
1.04 to 2.03GHz
( Output VSWR : less than 2.0 )


High-Speed Programmable Attenuator Library
