Step Attenuator MAT850

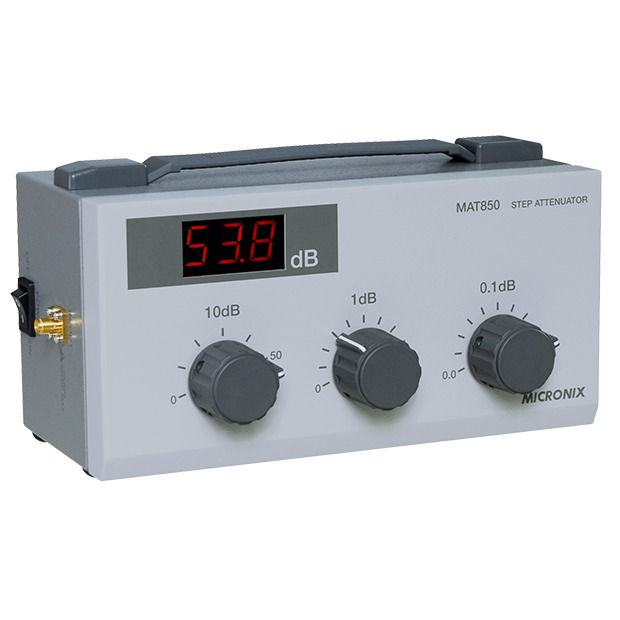

  • Photo:Step Attenuator MAT850

    Step Attenuator MAT850download

    • Small and lightweight step attenuator.
    • Manual adjustment is possible in 0.1 dB increments while checking the current Attenuation.
    • Putting upward or on transverse is available.

Features

  1. The frequency range is so wide as 300MHz to 6.1GHz.
  2. The minimum step size of attenuation is 0.1dB, and the maximum attenuation is 60dB.
  3. Equips with spike noise removal circuit at switching moment.
  4. LED display easy to see.

Specification

Scroll
Model Frequency range Attenuation Input Power
(1dB compression)
type
Maximum Resolution
MAT850 300MHz to 6.1GHz 60dB 0.1dB 25mW Step Attenuator

Correspondence table

Scroll
Application MAT850
Cellular phone1
(JPN/USA)
W-CDMA
HSDAPA
HSPA+
LTE
Cellular phone2
(JPN/USA)
cdma
cdma2000
Cellular phone3
(EUR/ASIA)
GSM
GPRS
EDGE
1xEV-D0
PHS
(JPN/ASIA)

Wireless LAN 2.4GHz
11/11b/11g/11n
5GHz
11a/11n
UWB 3.4 to 4.8GHz
@JPN
7.25 to 10.25GHz
@JPN

3.1 to 10.6GHz
@USA

Bluetooth
ZigBee
WiMAX・Mobil WiMAX 2.5GHz
3.5GHz
5.8GHz
GPS
1.57542GHz

RF-ID 900MHz
2.5GHz
ETC/DSRC
BS/CS
Digital broadcasting
Antenna
Reception Frequency
11.72748 to 13GHz

Converter
Intermediate Frequency
1.04 to 2.03GHz
( Output VSWR : less than 2.0 )

Step Attenuator Library

*MICRONIX Corporation reserves the right to make changes in design, specification and other information without prior notice.
