Low noise amplifier MAP301

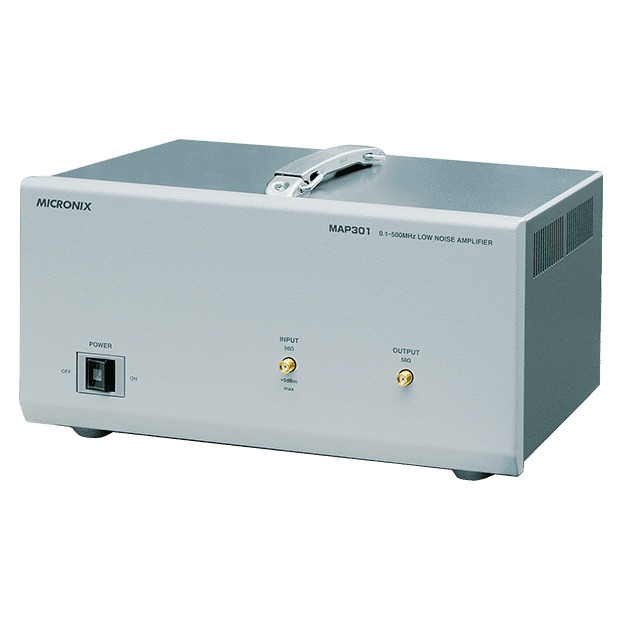

  • Photo:Low noise amplifier MAP301

    Low noise amplifier MAP301download

    • Optimum amplifier for EMC emission noise measurement.
    • Capable of emission noise measurement of CISPR25 in combination with loop antenna MAN120.

Specification

Frequency range 100kHz to 500MHz
Noise figure 3.5dB(Average Noise Level)
Gain 50dB(nominal)
Gain flatness

1.5dBp-p(0.1 to 100MHz,Average Noise Level)

2.5dBp-p(0.1 to 500MHz,Average Noise Level)

P1dB +8dBm(Average Noise Level)
Input damage level +5dBm(CW average power), 50VDC
Input/output impedance 50Ω@input and output
VSWR 1.3(Average Noise Level)@input, 1.4(Average Noise Level)@output
Input/output connector SMA(J)
Power supply

Power supply will be set in factory.

A1:100VAC(90 to 110VAC

A2:120VAC(110 to 130VAC)

A3:220VAC(200 to 240VAC)

A4:240VAC(210 to 260VAC

Power consumption:7W max

Dimensions 260(W)×125(H)×220(D) mm
Weight approx.2.5kg
Operating temperature 0 to +50℃
Storage temperature -20 to +65℃
Standard accessories Power cable, Fuse, Operation manual

Biconical Antenna MAN150

  • Photo:Biconical Antenna MAN150

    Biconical Antenna MAN150

    Broadband, compact and lightweight antenna with frequency band from 20MHz to 3GHz.

    Frequency range 20MHz to 3GHz
    Connectors SMA(J)
    Gain -45 to +1dBi
    Antenna factor 20 to 51dB/m
    Dimensions 350(L)×160(W)×140(D)mm
    Weight approx.350g

*MICRONIX Corporation reserves the right to make changes in design, specification and other information without prior notice.
