MICRONIX

ETC/DSRC RSU simulator ME9010

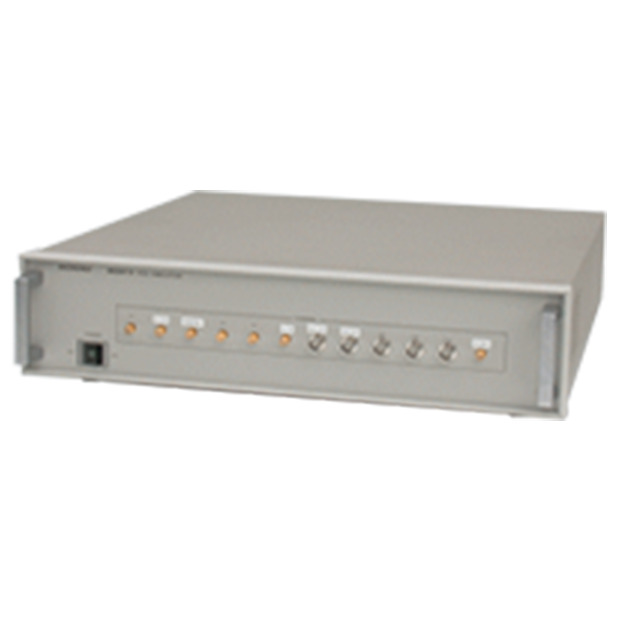

  • Photo:ETC/DSRC RSU simulator ME9010

    ETC/DSRC RSU simulator ME9010download

    • Equipping with QPSK and ASK.
    • Based on ARIB STD-T75 and ARIB TR-T16.
    • Equipe with QPSK and ASK modulation
    • Supported Profile 9 to 12.
    • The necessary tool by all means to do Protocol test, Profile test, Dynamic motion test and Wireless system test of ASK OBE, QPSK OBE or ASK+QPSK OBE.

Features

  1. Based on ARIB STD-T75 and ARIB TR-T16.
  2. ME9010 is based on ARIB STD-T75 and ARIB TR-T16 which are DSRC system regulations, and operates as a RSU (Road Side Unit).

  3. Equipe with QPSK and ASK modulation
  4. Supported Profile 9 to 12 in ARIB STD-T75.
  5. This system is possible that Basic operation test, dynamic operation test, 4 wireless system test.
  6. ME9010 is able to do a dynamic motion test and a wireless system test by controlling spectrum analyzer, fast programmable attenuator (MAT800), microwave AM detector (MMD850), digital oscilloscope and average power meter connected outside besides a basic operation test.

  7. PC software MAS960
  8. PC software MAS960 is used to control ME9010 and external equipment, and to display the test result.

Specification

RF specifications

Scroll
Item ASK QPSK
Modulation form ASK modulation by sprit phase code π/4QPSK modulation
Transmission characteristics Output level -4dBm±2dB
@CW “1”, T12 output
-4dBm±2dB
@all “1” at base band, average power, T12 output
Output frequency 5.775, 5.780, 5.785, 5.790, 5.795, 5.800, 5.805GHz±5ppm
Occupied bandwidth within 4.4MHz
Carrier off leakage power less than 2.5μW
Adjacent channel power less than -30dBc@5±2.2MHz, less than -40dBc@10±2.2MHz
Spurious radiation strength less than 2.5μW
Signal transmission rate 1024kbps±100ppm 4096kbps±100ppm
Radio wave strength emitted subordinately less than 2.5μW
Modulation factor/accuracy 75 to 100% less than 12.5%
Receiving characteristics Receiving level range -32 to -53dBm@T6 input

Applicable test

Scroll
Item ASK QPSK Additional equipment
Basic operation test Protocol test (2-1-1) to (2-1-22) ME8661A(with antenna)
profile test communication profile 9 to 12
Dynamic motion test   (2-2-1) to (2-2-3)

ME8661A(with antenna)

MAT800

Average power meter

Wireless system test
(items relating to TRCC)
Antenna power

ME8661A(with antenna)

Spectrum analyzer(with frequency counter)

MAT800

Average power meter

Carrier frequency
Occupied bandwidth
Carrier off leakage power
Adjacent channel power
Spurious radiation strength
Signal transmission rate
Radio wave strength emitted subordinately
Wireless system test
(items not relating to TRCC)
Modulation factor

ME8661A(with antenna)

MMD850

Digital oscilloscope

Modulation accuracy

ME8661A(with antenna)

Spectrum analyzer(with modulation accuracy measurement)

Receiving sensitivity

ME8661A(with antenna)

MAT800

Average power meter

Opening eye ratio

ME8661A(with antenna)

MMD850

Digital oscilloscope

General

Operating temperature 0 to 40℃ (Guaranteed at 23±5℃)
Operating humidity less than 40℃/80% RH以下 (Guaranteed at less than 28℃/80% RH)
Storage temperature -10℃ to 60℃, less than 60℃/80% RH
Power supply 90 to 110VAC, 50/60Hz
Dimensions 430(W) x 150(H) x 440(D)mm
Standard accessories GP-IB cable(1), Power code(1), Fuse(1), Operating manual(1)

Note

  • ME8661A : Shield box, with transmission/receiving/reference antenna
  • MAT800 : Fast programmable attenuator
  • MMD850 : Microwave AM detector
  • TRCC : Technical Regulations Conformity Certification

Library

*MICRONIX Corporation reserves the right to make changes in design, specification and other information without prior notice.
