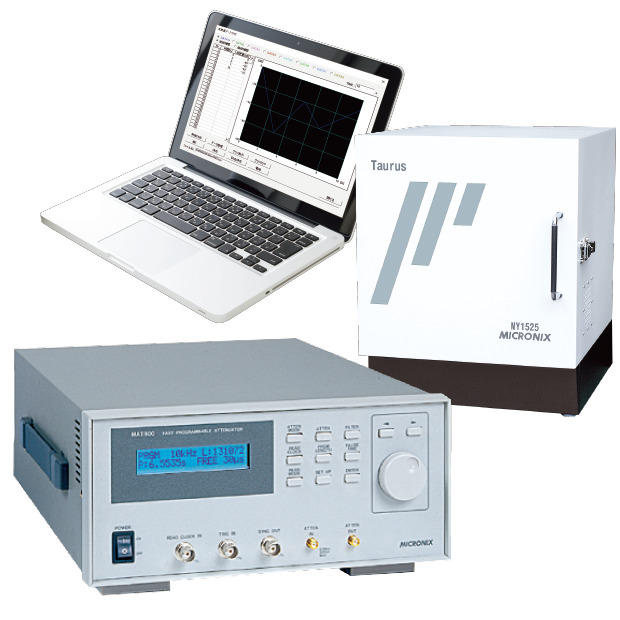

Handover Tester MH3800

For improving the efficiency of verification man-hours by quantifying the test environment, long-run (aging) tests, and automating tests.

Categories: Measuring System, Variable Attenuator

Download catalog

1. Features
1.1. It simulates the attenuation process of radio wave in which the communication of mobile terminal transfers from base station A to base station B.
1.2. Handover (handoff) evaluation
1.3. Fallback operation test (decrease in transmission speed)
1.4. Long-run (aging) test
1.5. High versatile and scalable system
1.6. Simple scenario creation and control
1.7. Target market
2. System configuration example
2.1.1. High-speed programmable attenuator
2.1.1.1. Products lineup
2.1.2. Compact shielding box
2.1.2.1. Products lineupp
3. Library
3.1. Products Catalog

Optimal configuration to simulate the change of radio wave in air.
lead to quantifying the test environment, long run (aging) test and reduction of the verification time by automating the test.
Enable 8 paths as standard and maximum 64 paths (controls 64 units of MAT 800/810 at once).

Features

It simulates the attenuation process of radio wave in which the communication of mobile terminal transfers from base station A to base station B.

*Since MH3800 only simulates the communication environment, the evaluation of actual communication quality such as throughput measurement and packet capture needs an evaluation software such as iperf and Wireshark.

Handover (handoff) evaluation

The strength of the radio wave when the mobile terminal moves closer or farther towards multiple base stations or access points can be simulated, and then the handover is caused.

The attenuation scenario can be synchronously controlled up to 64 channels.

Fallback operation test (decrease in transmission speed)

The attenuation amount according to the distance to the cell can be switched continuously and without 1/4 interruption.

The high-speed programmable attenuator MAT 800/810 is an electronic variable attenuator and has a very fast switching speed of 2 μs. Therefore it can simulate the transient phenomena such as shadowing.

Long-run (aging) test

By automating the repetitive tests in the same scenario, the efficiency and time of test will be improved.

A continuous durability test in day and night can be also done by uninhabited.

High versatile and scalable system

If it is used within the frequency range from 300 MHz to 12.5 GHz, there is no need to worry about communication standards. The equipment doesn’t become obsolete, and also is excellent in versatility and scalability.

*The frequency range depends on which of the six models of MAT 800 A / B / C / D / E and MAT 810 is used.

Simple scenario creation and control

The attenuation data creation & control software MAS 801 enables to create and control scenarios with intuitive operation.

Moreover, the attenuation data during executing scenario can be monitored.

Target market

Cellular phone (2G, GSM, 3G, CDMA, 4G, LTE, WiMAX, 5G and etc.), Wireless LAN, Bluetooth, Zigbee, NFC, RFID, Wi-SUN, UWB, ETC 2.0, DSRC, M2M, Sensor, Wearable, Satellite communication and etc.

Applied frequency : 300MHz to 12.5GHz (depend on the model of programmable attenuator)

System configuration example

Handover in two paths of the wireless LAN (two access points and one client)

High-speed programmable attenuator

Model	Frequency range	Maximum Attenuation	Maximuminput
MAT800A	1.5 to 4.5GHｚ	80dB	100mW 　(+20dBm) 　　*P1dB
MAT800B	3.0 to 9.0GHz
MAT800C	4.5 to 12.5GHz
MAT800D	1.95 to 5.85GHz
MAT800E	0.75 to 2.25GHz
MAT810	0.3 to 6.6GHz	60dB	25mW 　(+14dBm) 　*P2dB

Products lineup

High-Speed Programmable Attenuator MAT800 Series

Multi-function programmable attenuator which can switch the attenuation by ultra high-speed (2μs). Maximum attenuation 80dB.

High-Speed Programmable Attenuator MAT810

There are no chattering and spike at switching moment because of differing from traditional mechanical attenuator. The precise simulation of wireless communication is capable by setting the attenuation step small. The frequency band is divided into sixteen and the calibration is done at each frequency so that the frequency characteristics of attenuation is made flat.

Compact shielding box

Model	Outside Dimensions(W,H,D mm)	Inside Dimensions(W,H,D mm)	Shielding Characteristics(typ)	Note
MY1510	380 x 165 x 380	315 x 100 x 315	70dB typ＠2.4GHz
MY1515	465 x 214 x 465	400 x 150 x 400	70dB typ＠2.4GHz	with fan
MY1520	520 x 520 x 520	460 x 460 x 460	70dB typ＠2.4GHz
MY1520SW	520 x 520 x 520	460 x 460 x 460	70dB typ＠2.4GHz	with shield window
MY1525	460 x 570 x 582	340 x 340 x 400	90dB typ＠2.4GHz	with fan
MY1530	1120 x 705 x 620	1000 x 500 x 500	70dB typ＠2.4GHz

Products lineupp

Electromagnetic Anechoic Box /Shield Box Taurus Series MY1510

Small size : Portable and light weight type.
Low price, Light weight, Short delivery.
High quality and reliability the testing and measuring instruments manufacturer offers.

Electromagnetic Anechoic Box /Shield Box Taurus Series MY1515

Type equipping with exhaust fan and intake.
Exhaust fan/air intake mounted type. The heat rise inside the anechoic chamber is suppressed, providing an ideal test environment for long hours of continuous operation, such as aging tests.

Electromagnetic Anechoic Box /Shield Box Taurus Series MY1520

Medium size : The most general and universal type.
The front opening makes it very easy to work with.

Electromagnetic Anechoic Box /Shield Box Taurus Series MY1520SW

A large shield window is provided as standard equipment. Changes in the state of the EUT can be checked from outside the electromagnetic anechoic box. It can be used in a wide range of test environments, such as checking changes in display content and operation during high-speed data communication.
