RF matrix switch box MM6000

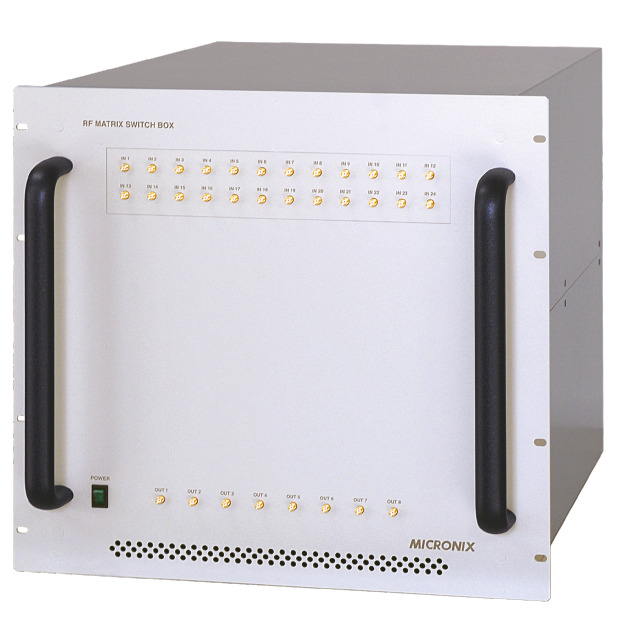

  • Photo:RF matrix switch box MM6000

    RF matrix switch box MM6000 download

    • RF matrix switch box MM 6000 series is an RF signal switching equipment with multiple input ports and output ports.
    • With application software, the signal path will be switched at high speed and in matrix, so that the input signal will be leaded to an arbitrary output port.
    • Furthermore, the electronic programmable attenuators are installed at all output ports, and RF signal can be seamlessly attenuated.
  1. RF signal led to multiple (24 or 16) input ports is output to one port selected from 8 output ports.
    However, the input port and output port are bidirectional.
  2. The combinations of input and output ports and attenuator control can be remotely performed with PC in LAN.
  3. With remote access function (CLI command), TCP / IP socket communication with external application is possible.
  4. Application software is attached as standard.

Specification

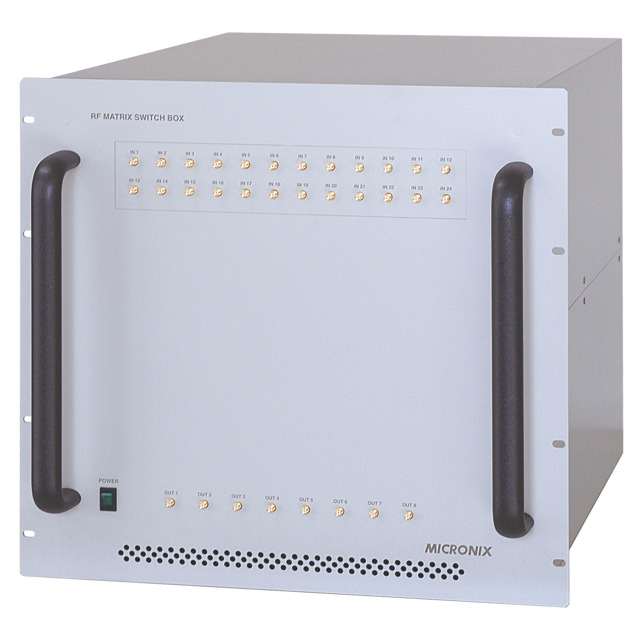

  • Photo:24 x 8 RF matrix switch box MM6824
    24 x 8 RF matrix switch box MM6824

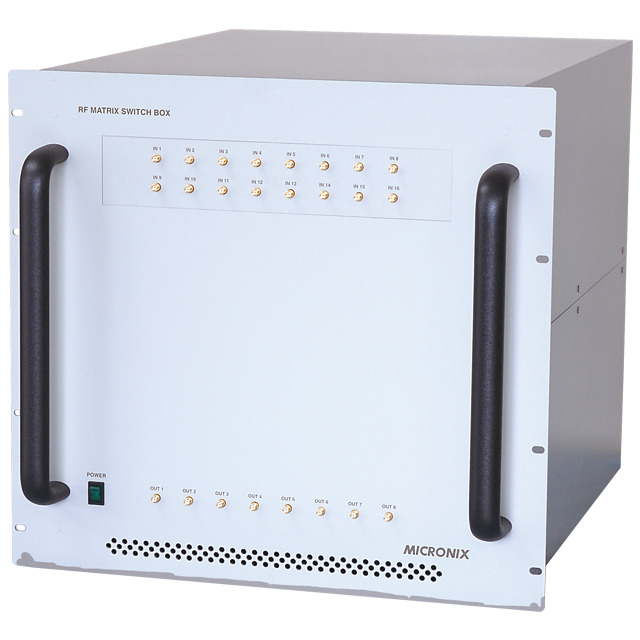

  • Photo:16 x 8 RF matrix switch box MM6816
    16 x 8 RF matrix switch box MM6816
Scroll
MM6824 MM6816
Frequency range 700MHz to 4GHz
VSWR 700MHz to 4GHz
Maximum input level
(base station)
700MHz to 4GHz
Maximum input level
(terminals)
700MHz to 4GHz
Insertion loss 20dB(Average Noise Level)
Isolation

more than 80dB (switch)

more than 17dB (splitter)

Number of input / output ports
(base station)
24 16
Number of input / output ports
(terminals)
8
Input / output combination 1 to 1
RF Connectors SMA(J)
Impedance 50Ω
Switch Relay type
Attenuator Electronic (digital)
Attenuation 0 to 95.5dB(0.5dBStep Attenuator)
Interface LAN
Dimensions

482.6(W) x 443.7(H) x 550.0(D)mm(excluding projections)

10U : Capable of installing in 19-inch system rack mount.

Weight approx.50kg approx.45kg
Power source AC100V(50/60Hz)

*Please contact us as for specifications different from the above.

Application

Figure:Application

The propagation path environment such as handover between multiple CAs and 4 × 4 MIMO can be controlled with GUI. We manufacture and sell shield boxes to isolate the terminal from commercial radio waves.

*glossary
  • CA=Carrier Aggregation. Technology to increase the speed to bundle radio waves (lines) of different frequencies.
  • MIMO=Multiple Input and Multiple Output. Technology that multiple data are simultaneously transmitted and received with radio wave of same frequency using multiple antennas on base station and terminal.

Control software

This is application software to control remotely from PC in LAN.
Since the port used by another user is exclusive, the erroneous operation will be prevented. Maximum four units of RF matrix boxes can be controlled with GUI.

Automatic control screen: A menu that collectively controls the setting of switch route and attenuator created in advance.

Photo:Automatic control screen

Manual control screen: A menu that controls the setting of switch path and attenuator separately.

Photo:Manual control screen

System configuration and image of rack mount

  • Capable of controlling the same unit from multiple PCs in LAN.

    Figure:System configuration
  • Image of 24 x 8 matrix Path between input and output can be freely switched.

    Figure:Image of 24 x 8 matrix Path between input and output can be freely switched.
  • Image of 8 units installation 4 units can be installed in 44 U rack.

    Figure:Image of 8 units installation 4 units can be installed in 44 U rack.

*Please contact us for details and combination of the system.
*MICRONIX Corporation reserves the right to make a change in design, specification and other information without prior notice.
