Hand-in type Electromagnetic Anechoic Box MY3710HS

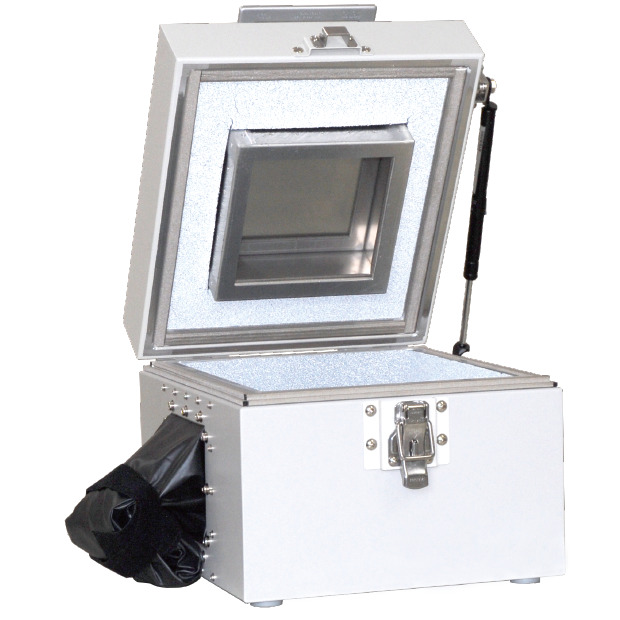

  • Photo:Hand-in type Electromagnetic Anechoic Box MY3710HS

    Hand-in type Electromagnetic Anechoic Box MY3710HSdownload

    • Higher shielding performance than MY3710‥‥≧80dB
    • DUT can be operated directly with bare hands while placing it in the box and looking at the inside from the shield window.
    • Suitable for weak electric field resistance test, out-of-service test or digital forensics for mobile phone, smart phone or tablet terminal.

Features

  1. Achieving high shielding performance‥‥≧80dB@0.6 to 6GHz
  2. The various radio waves such as 3G / 4G (LTE / WiMAX) / Wi-Fi (2.4GHz & 5GHz bands) which are a mainstream in communication system of mobile terminal will be blocked off.

    This performance is realized by our own technology regarding shield window.

  3. DUT can be operated with bare hands
  4. It is possible to put one hand or both hands (optional MY3700-001 is installed) in it. Moreover DUT can be operated with bare hands.

    Since it is possible to operate directly with bare hands, poor reaction of touch panel by using the glove type will be eliminated and the fine operation will be able to be done.

  5. Small and light weight
  6. Outside Dimensions:approx.320(W)×260(H)×360(D)mm(excluding projections), Weight:approx. 9kg (excluding I/F module).

    10-inch tablet terminal can be put in box.

  7. One touch lock mechanism
  8. Just by turning the knob the lock is released, and when it is closed it is locked just by closing the lid. It is very simple to operate.

  9. Correspond to the various interfaces
  10. By exchanging the optional I/F module, the various interfaces can be used.

    Since the noise filter is inserted in almost these interfaces, the influence of noise entering from the cable will be reduced.

Specification

Outside
Dimensions
approx.
320(W)×260(H)×360(D)mm
(excluding projections)
Inside
Dimensions
approx.
250(W)×145(H)×290(D)mm
Weight approx.
9kg
(excluding I/F module)
Structure Double structures with radio wave absorber and aluminum plate.
Shielding
Characteristics
(typ)
more than 80dB (600MHz to 6GHz)
Reflection loss more than 20dB (≧2.4GHz)
Shield window approx.
140(W)×140(D)mm
Connectors SMA 4pcs
Option
  • I/F Module
    (possible of installing one module of IFM1 to IFM6 on the back.)
  • Shielded arm cover
    (factory option, MY3700-001 *Standard is only one side.)
  • Conduction arm supporter (MY3700-002)
  • LED light (battery drive, MY3700-102)

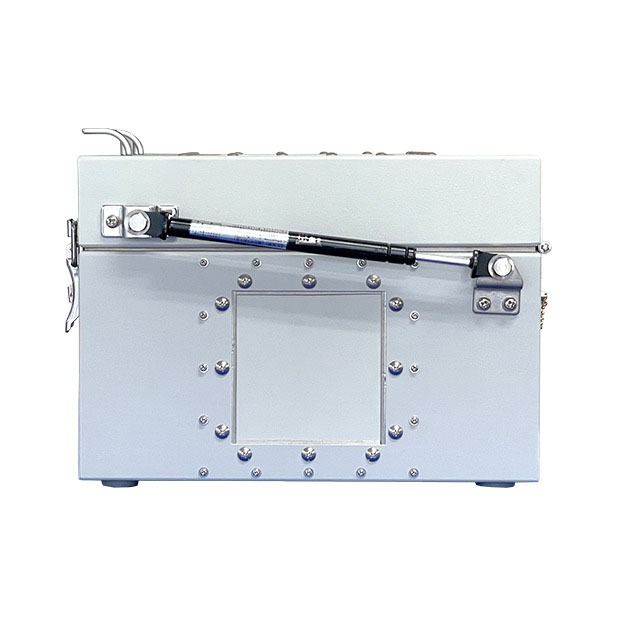

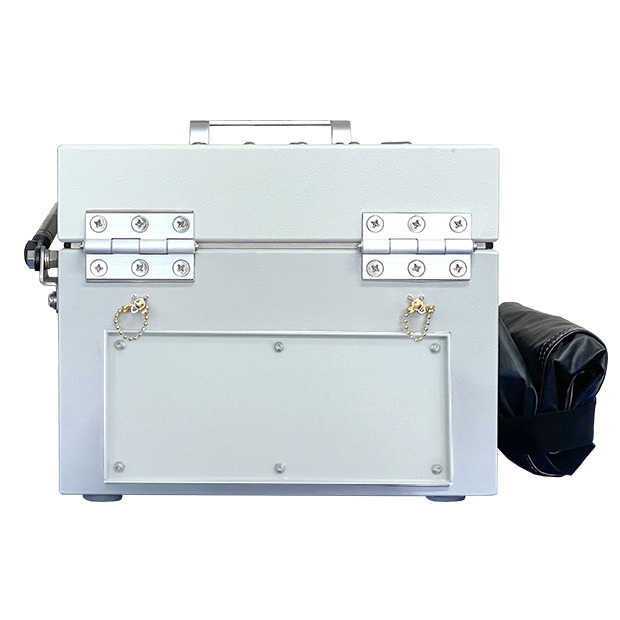

Exterior

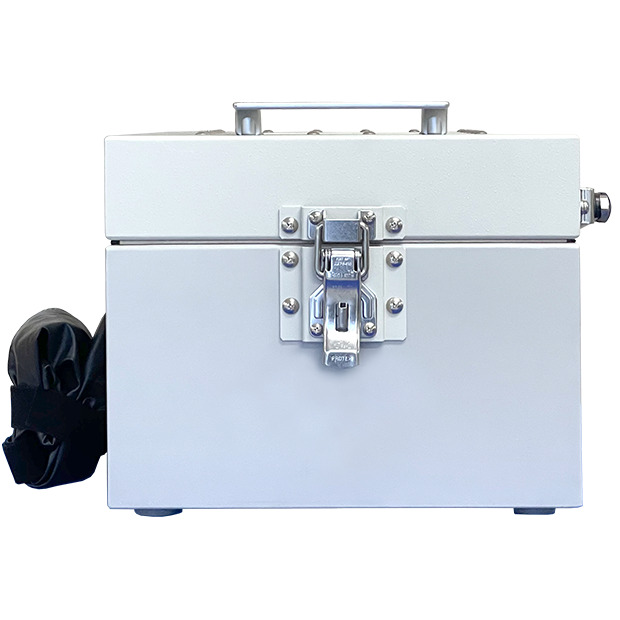

  • Photo:MY3710HS Front (when closed)

    Front (when closed)

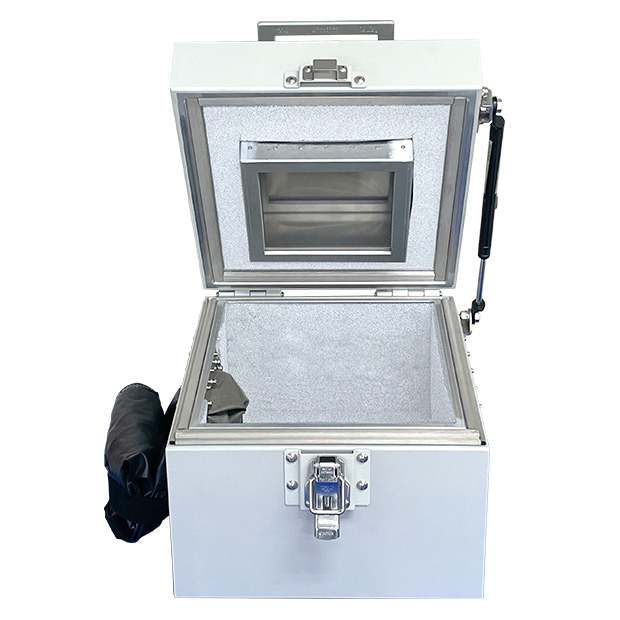

  • Photo:MY3710HS Front (when opened)

    Front (when opened)

Option

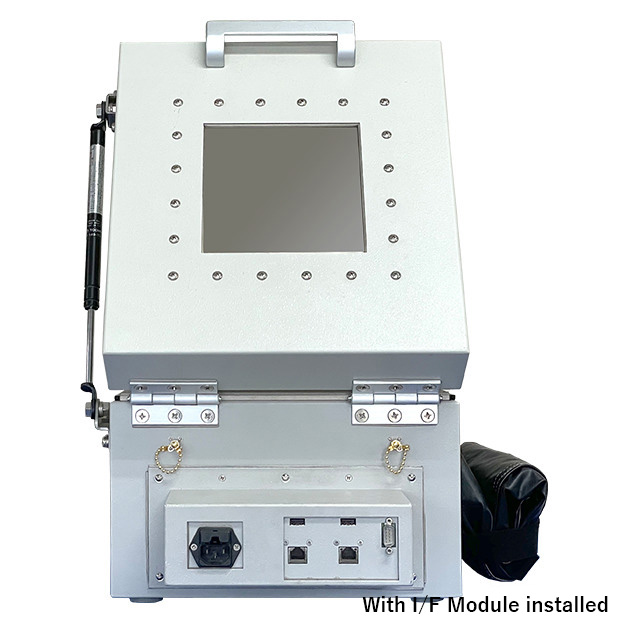

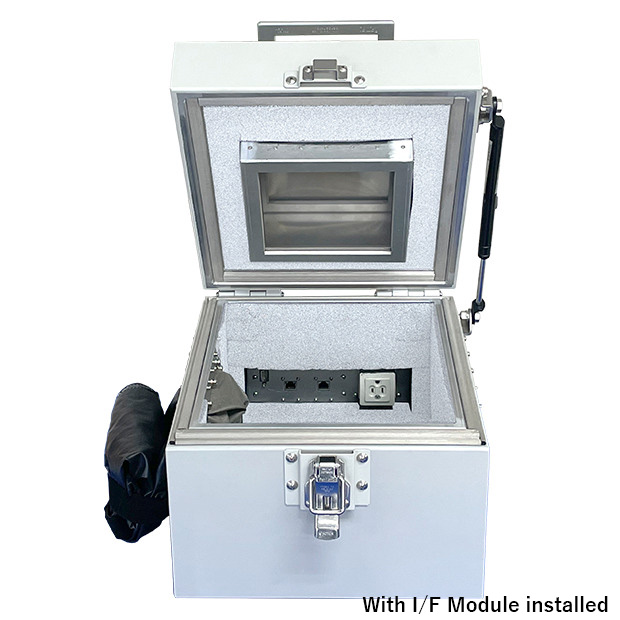

I/F Module

  • Photo:I/Fモジュール

    I/F Module

    TaurusSeriesdownload

    I/F module is equipped with AC power supply, DC power supply, LAN, USB, SMA, BNC, N, Triaxial, D-sub connectors and Through pipe.

    The I/F module can be easily replaced if needed.

    Option Equipped connectors
    IFM1 AC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc)
    IFM2 AC(1pc), LAN(2pcs), USB(2pcs), D-sub9pin(1pc)
    IFM3 AC(1pc), LAN(2pcs), USB(2pcs), D-sub25pin(1pc)
    IFM4 DC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc), D-sub25pin(1pc)
    IFM5 SMA(2pcs), BNC(2pcs), N(2pcs), Triaxial(2pcs)
    IFM6 Through pipe (two kinds are selectable)
    *Inner diameter is different depending on the frequency band.

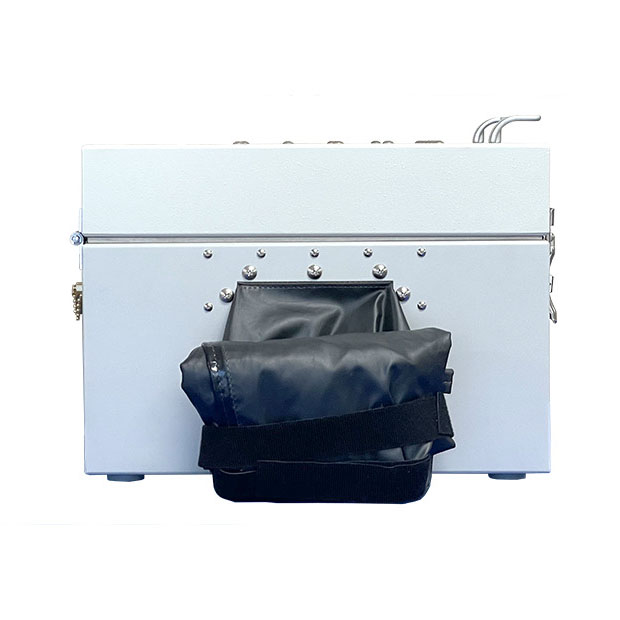

Shielded arm cover MY3700-001

  • Photo:Ex.) Installing IFM1and MY3700-001

    Ex.) Installing IFM1and MY3700-001
    *This photo is MY 3710.

    Ex.) Installing IFM1and MY3700-001 Option for inserting a hand. Standard is only one side.
    *factory option.

Conduction arm supporter MY3700-002

This increases the conductivity between the shield arm cover because conductive material is used.

LED light(Battery drive) MY3700-102

Internal visibility is improved.

Library
