Hand-in type Electromagnetic Anechoic Box MY3720

  • Photo:Hand-in type Electromagnetic Anechoic Box MY3720

    Hand-in type Electromagnetic Anechoic Box MY3720download

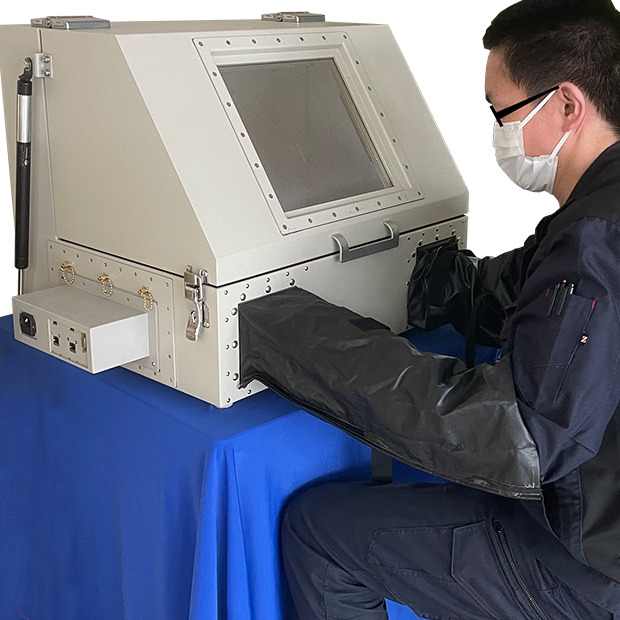

    • DUT can be operated directly with bare hands while placing it in the box and looking at the inside from the shield window.
    • Suitable for weak electric field resistance test, out-of-service test or digital forensics for smart phone, tablet terminal or mobile PC.

Features

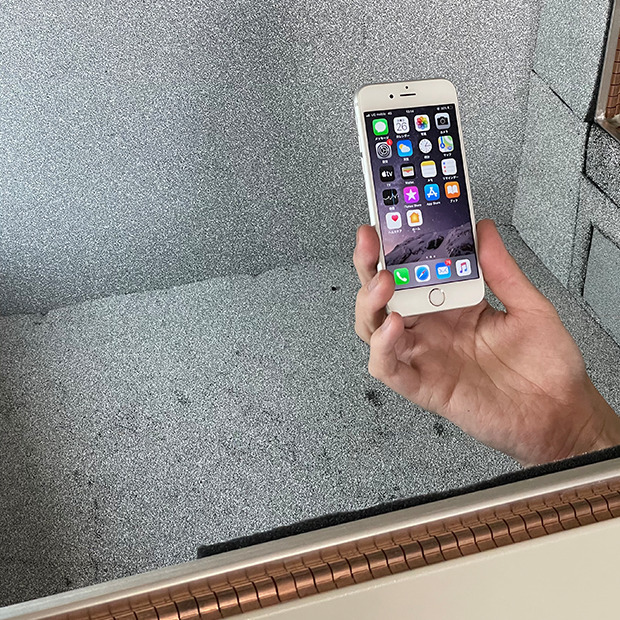

  1. DUT can be operated with bare hands
  2. It is possible to put one hand or both hands in it. Moreover DUT can be operated with bare hands.

    Since it is possible to operate directly with bare hands, poor reaction of touch panel by using the glove type will be eliminated and the fine operation will be able to be done.

  3. Providing wide viewing angle using large shield window
  4. Large shield window of 275 × 255 mm.

    Despite of use of shield window, shielding effectiveness over 60dB is ensured at frequency from 600MHz to 6GHz.

    The various radio waves such as 3G / 4G (LTE / WiMAX) / Wi-Fi (2.4GHz & 5GHz bands) which are a mainstream in communication system of mobile terminal will be blocked off.

    This performance is realized by our own technology regarding shield window.

  5. Correspond to the various interfaces
  6. By exchanging the optional I/F module, the various interfaces can be used.

    Since the noise filter is inserted in almost these interfaces, the influence of noise entering from the cable will be reduced.

Specification

Outside
Dimensions
approx.
615(W)×515(H)×518(D)mm
(excluding projections)
Inside
Dimensions
approx.
550(W)×450(H)×450(D)mm
Weight approx.
21kg
(excluding I/F module)
Structure Double structures with radio wave absorber and aluminum plate.
Shielding
Characteristics
(typ)
more than 60dB(600MHz to 6GHz)
Reflection loss more than 20dB (≧2.4GHz)
Shield window approx.
275(W)×255(D)mm
Connectors SMA 6pcs (Both sides each 3pcs)
Option
  • I/F Module
    (possible of installing one module of IFM1 to IFM6 on the back.)
  • Conduction arm supporter (MY3700-002)
  • LED light (battery drive, MY3700-102)

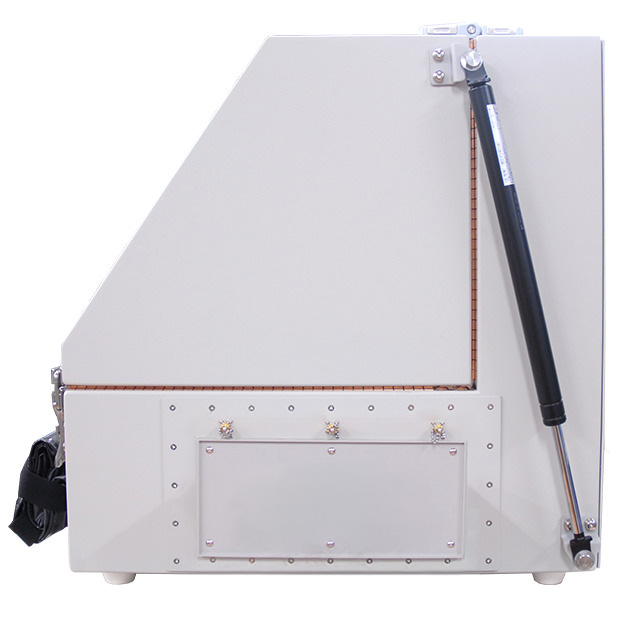

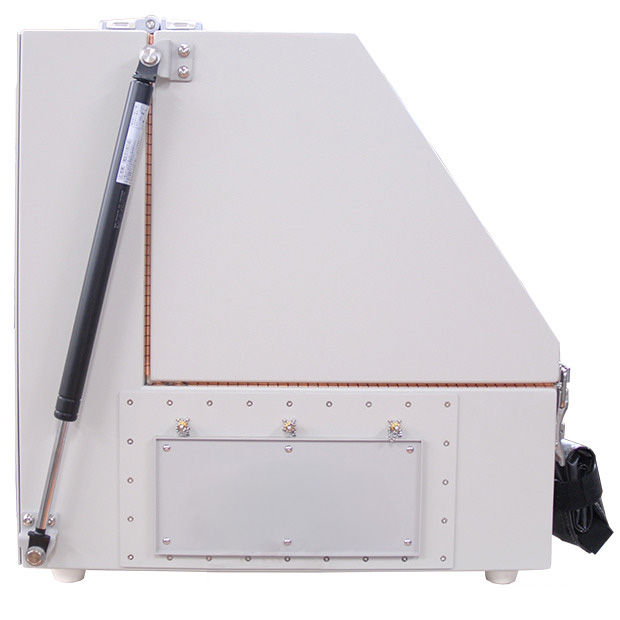

Exterior

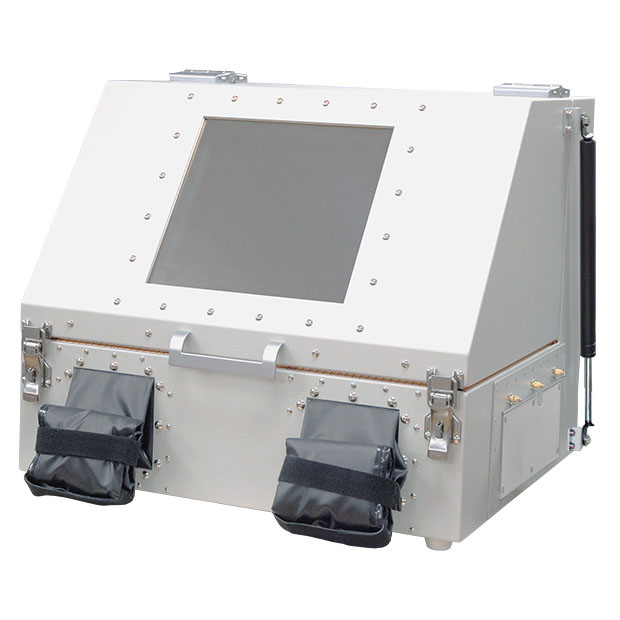

  • Photo:MY3720 Front (when closed)

    Front (when closed)

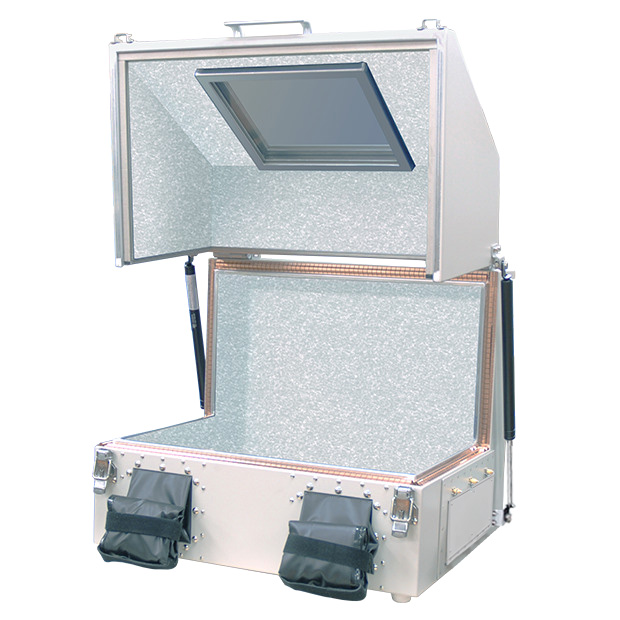

  • Photo:MY3720 Front (when opened)

    Front (when opened)

Option

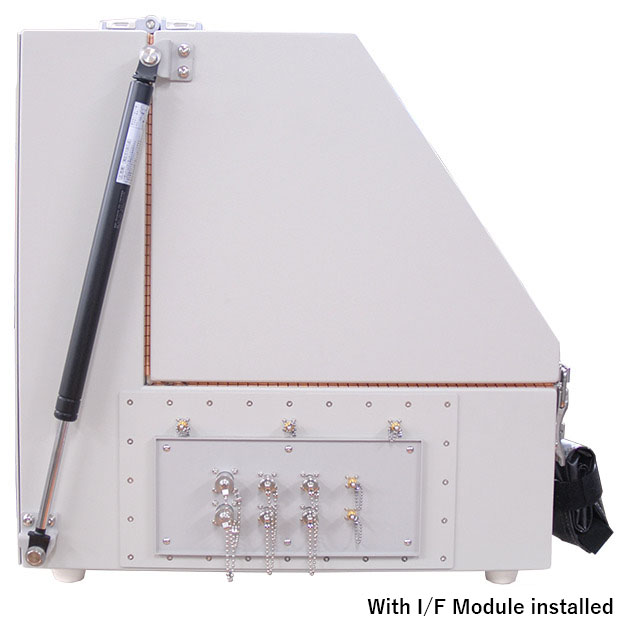

I/F Module

  • Photo:I/Fモジュール

    I/F Module

    TaurusSeriesdownload

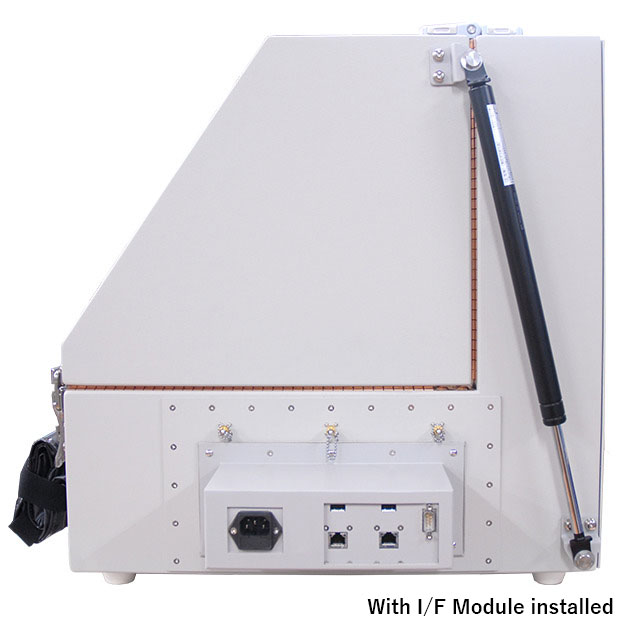

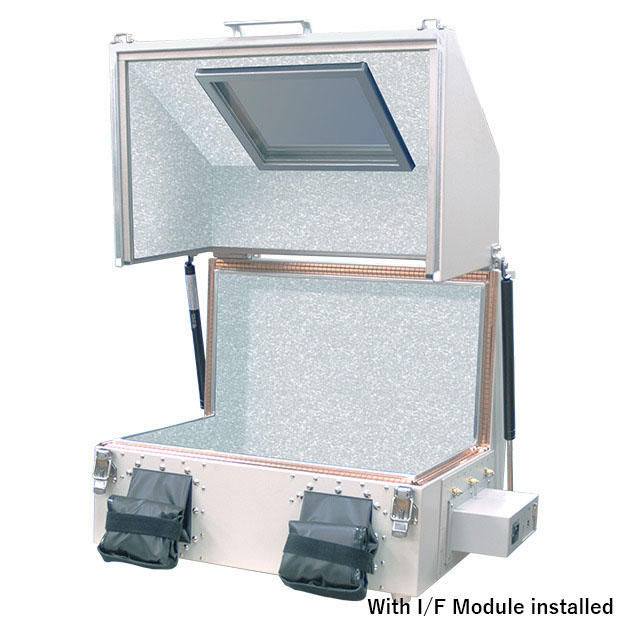

    I/F module is equipped with AC power supply, DC power supply, LAN, USB, SMA, BNC, N, Triaxial, D-sub connectors and Through pipe.

    The I/F module can be easily replaced if needed.

    Option Equipped connectors
    IFM1 AC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc)
    IFM2 AC(1pc), LAN(2pcs), USB(2pcs), D-sub9pin(1pc)
    IFM3 AC(1pc), LAN(2pcs), USB(2pcs), D-sub25pin(1pc)
    IFM4 DC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc), D-sub25pin(1pc)
    IFM5 SMA(2pcs), BNC(2pcs), N(2pcs), Triaxial(2pcs)
    IFM6 Through pipe (two kinds are selectable)
    *Inner diameter is different depending on the frequency band.

Conduction arm supporter MY3700-002

This increases the conductivity between the shield arm cover because conductive material is used.

LED light(Battery drive) MY3700-102

Internal visibility is improved.

Library

*MICRONIX Corporation reserves the right to make changes in design, specification and other information without prior notice.
