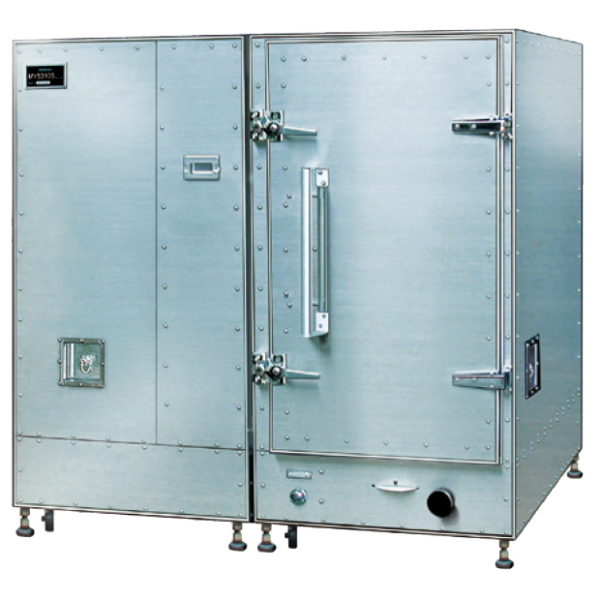

Electromagnetic anechoic box (Shielding box)MY5310S

Specification

Outside
Dimensions
(approx.)
1350(W)×1220(H)×1080(D) mm
Inside
Dimensions
1230(W)×920(H)×920(D) mm
Door opening dimensions 510(W)×910(H)mm
Weight approx.460kg
Turntable 220mm in diameter
/10kg in load
Radio wave absorber Ferrite tile structured double
Shielding
Characteristics
(typ)
70dB typ@2.2GHz
Reflection Loss more than 20dB@35MHz to 2.2GHz

Points

  1. Easy and convenient to carry.
  2. It becomes easy and convenient to carry MY5310S in such small place as office building because it can be carried after divided into two.

  3. Carry on by elevator possible.
  4. It is possible to carry MY5310S by using a general size elevator with a capacity of 11 or more persons.

    MY5310 adopts a structure for which the work for separation and assembly can be done without any special tool and knowledge.

    Therefore, there is such a flexibility as being able to move MY5310S to another place again.

  • Photo:Reference antenna Spiral antenna
    Dimensions after divided
    Width 680mm
    Depth 1080mm
    Height 1220mm
    Dimensions of elevator of 11 capacity
    Doorway width 800mm
    Depth 1350mm
    Height 2300mm

    (Depending on JIS A4301)

Expansion

図:MY5310S拡張例
  • Table unit( for large-scale EUT )
    This unit is equipped with a turntable of diameter 500mm and 50kg load.
  • Spacer unit
    The space unit of 610mm width inserted between two units divided enablesa wider space.

Library

*MICRONIX Corporation reserves the right to make changes in design, specification and other information without prior notice.
