Electromagnetic anechoic box (Anechoic chamber) /Shield box Taurus Series

  • Photo:TaurusSeries

    TaurusSeriesdownload

    • Low price, Light weight, Short delivery !
    • High quality and reliability the testing and measuring instruments manufacturer offers.

Anechoic Box Type

Anechoic Box Type which inside is covered with an radio wave absorber.

  • MY1510

    Photo:MY1510

    MY1510

    TaurusSeriesdownload

    Small size : Portable and light weight type.

    Model MY1510
    Outside
    Dimensions
    380(W)×165(H)×380(D)mm
    (excluding projections)
    Inside
    Dimensions
    315(W)×100(H)×315(D)mm
    Weight approx.3.5kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    70dB typ@2.4GHz
    Reflection Loss more than 20dB@≧ 2.4GHz, MYA-75
    Connectors 2 pcs of SMA@back
    I/F Module installation capacity 1 module@back
    Option
    • I/F Module

Back to Anechoic Box Lineup

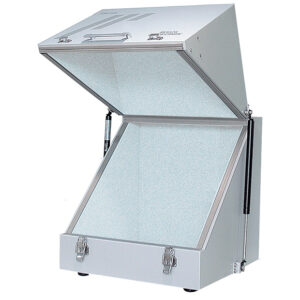

  • MY1520

    Photo:MY1520

    MY1520

    TaurusSeriesdownload

    Medium size : The most general and universal type.

    Model MY1520
    Outside
    Dimensions
    520(W)×520(H)×520(D)mm
    (excluding projections)
    Inside
    Dimensions
    460(W)×460(H)×460(D)mm
    Weight approx.15kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    70dB typ@2.4GHz
    Reflection Loss more than 20dB@≧ 2.4GHz, MYA-75
    Connectors 2 pcs of SMA@back
    I/F Module installation capacity 2 modules@back
    Option
    • I/F Module
    • Wooden Table
    • Turn Table Unit
    • Radio wave absorber(MYA-77)

Back to Anechoic Box Lineup

  • MY1530

    Photo:MY1530

    MY1530

    TaurusSeriesdownload

    Large size : Type corresponding to even big EUT .

    Model MY1530
    Outside
    Dimensions
    1120(W)×705(H)×620(D)mm
    (excluding projections)
    Inside
    Dimensions
    1000(W)×500(H)×500(D)mm
    Weight approx.56kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    70dB typ@2.4GHz
    Reflection Loss more than 20dB@≧ 1.2GHz, MYA-77
    Connectors 4 pcs of SMA@2 at back and each one at both sides
    I/F Module installation capacity 4 modules@back
    Option
    • I/F Module
    • Wooden Table
    • Turn Table Unit
    • Radio wave absorber(MYA-75)
    • Radio wave absorber(MYA-79)
    本体標準価格 980,000円

Back to Anechoic Box Lineup

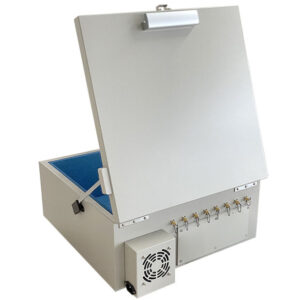

  • MY1515

    Photo:MY1515

    MY1515

    TaurusSeriesdownload

    Type equipping with exhaust fan and intake.

    Model MY1515
    Outside
    Dimensions
    465(W)×214(H)×465(D)mm
    (excluding projections)
    Inside
    Dimensions
    400(W)×150(H)×400(D)mm
    Weight approx.10kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    more than 70dB@2 .4GHz
    Reflection Loss more than 20dB@≧ 2.4GHz, MYA-75
    Fan 0.56m³/min (the maximum force of the wind)
    Connectors 8 pcs of SMA@back
    I/F Module installation capacity 1 module@back

Back to Anechoic Box Lineup

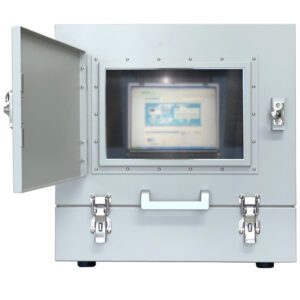

  • MY1520SW

    Photo:MY1520SW

    MY1520SW

    TaurusSeriesdownload

    Large shield window is equipped normally for looking info an anechoic box.

    Model MY1520SW
    Outside
    Dimensions
    520(W)×520(H)×520(D)mm
    (excluding projections)
    Inside
    Dimensions
    460(W)×460(H)×460(D)mm
    Weight approx.15kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    more than 70dB@2 .4GHz
    Reflection Loss more than 20dB@≧ 2.4GHz, MYA-75
    Shield window 300(W)×200(H)mm
    Connectors 2 pcs of SMA@back
    I/F Module installation capacity 2 module@back

Back to Anechoic Box Lineup

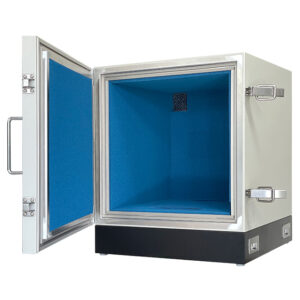

  • MY1525

    Photo:MY1525

    MY1525

    TaurusSeriesdownload

    With ventilation fan & 90dB shielding.

    Model MY1525
    Outside
    Dimensions
    460(W)×570(H)×582(D)mm
    (excluding projections)
    Inside
    Dimensions
    340(W)×340(H)×400(D)mm
    Weight approx.17kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    more than 90dB typ@2.4GHz
    Reflection Loss more than 20dB @≧ 1.2GHz, MYA-77
    Fan 0.56m³/min (the maximum force of the wind)
    Connectors 2 pcs of SMA@back
    I/F Module installation capacity 1 module@back

Back to Anechoic Box Lineup

Shield Box Type

Shield Box Type which inside is not covered with an radio wave absorber.

  • MY1510N

    Photo:MY1510N

    MY1510N

    TaurusSeriesdownload

    Small size : The lowest priced and the most lightweight type.

    Model MY1510N
    Outside
    Dimensions
    380(W)×165(H)×380(D)mm
    (excluding projections)
    Inside
    Dimensions
    375(W)×160(H)×375(D)mm
    Weight approx.1.9kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    60dB typ@2.4GHz
    Connectors 2 pcs of SMA@back
    I/F Module installation capacity 1 module@back
    Option
    • I/F Module

Back to Shield Box Lineup

  • MY1520N

    Photo:MY1520N

    MY1520N

    TaurusSeriesdownload

    Medium size : Low priced, the most general and universal type.

    Model MY1520N
    Outside
    Dimensions
    520(W)×520(H)×520(D)mm
    (excluding projections)
    Inside
    Dimensions
    515(W)×515(H)×515(D)mm
    Weight approx.12.3kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    60dB typ@2.4GHz
    Connectors 2 pcs of SMA@back
    I/F Module installation capacity 2 modules@back
    Option
    • I/F Module
    • Wooden Table

Back to Shield Box Lineup

  • MY1530N

    Photo:MY1530N

    MY1530N

    TaurusSeriesdownload

    Large size : Low priced type corresponding to even big EUT.

    Model MY1530N
    Outside
    Dimensions
    1120(W)×705(H)×620(D)mm
    (excluding projections)
    Inside
    Dimensions
    1115(W)×615(H)×615(D)mm
    Weight approx.42kg
    (without I/F Module)
    Shielding
    Characteristics
    (typ)
    60dB typ@2.4GHz
    Connectors 4 pcs of SMA@2 at back and each one at both sides
    I/F Module installation capacity 4 modules@back
    Option
    • I/F Module
    • Wooden Table
    • Turn Table Unit

Back to Shield Box Lineup

I/F Module

  • Photo:I/Fモジュール

    I/F Module

    TaurusSeriesdownload

    The I/F module is a module on which AC supply, DC supply, LAN, USB, SMA, BNC, N, Triaxial and/or D-sub connectors are mounted.

    All of the I/F modules are common to Taurus series. .

    Option Mounted Connectors
    IFM1 AC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc)
    IFM2 AC(1pc), LAN(2pcs), USB(2pcs), D-sub9pin(1pc)
    IFM3 AC(1pc), LAN(2pcs), USB(2pcs), D-sub25pin(1pc)
    IFM4 DC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc), D-sub25pin(1pc)
    IFM5 SMA(2pcs), BNC(2pcs), N(2pcs), Triaxial(2pcs)
    IFM6 Through pipe (two kinds are selectable)
    *Inner diameter is different depending on the frequency band.
    IFM10 AC(1pc), LAN(1pc), USB(2pcs), D-sub9pin(1pc)
    *Available for only MY1525.
    IFM11 DC(1pc), LAN(1pc), USB(2pcs), D-sub9pin(1pc)
    *Available for only MY1525.

Taurus SeriesLibrary
