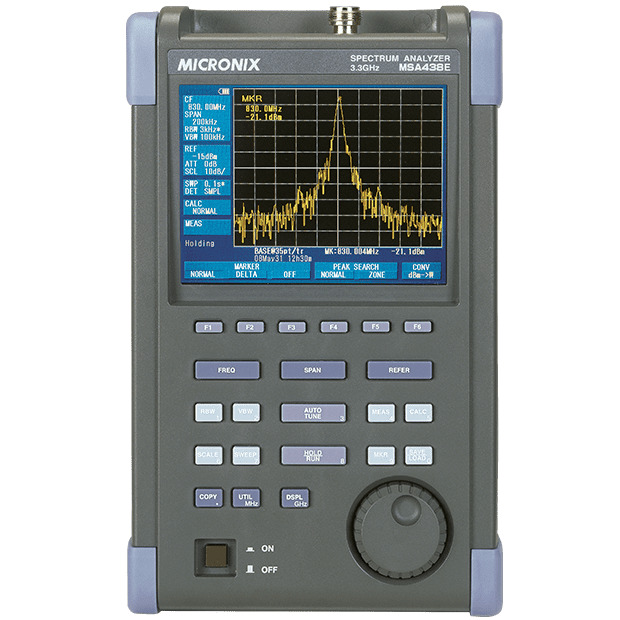

Handheld Spectrum Analyzer MSA438E
This is a model in which EMI measurement function is added to MSA438.
Measurement frequency : 50kHz to 3.3GHz
Features
| Measurement Frequency | 50kHz to 3.3GHz |
|---|---|
| Applications | Cellular phone, 2.4GHz wireless LAN, 2.5GHz WiMAX, RF-ID, Broadcasting |
| Average Noise Level |
|
| EMI Measurement | Radiated and conducted emission measurement |
| Detection | PosPK(positive peak), QP(quasi-peak), AV(average) |
| Resolution bandwidth(6dB) | 9kHz, 120kHz, 1MHz |
| Measurement of noise on printed circuit board | Magnetic field probe CP-2SA is used to measure the noise on a print circuit board connecting to the spectrum analyzer.
|
