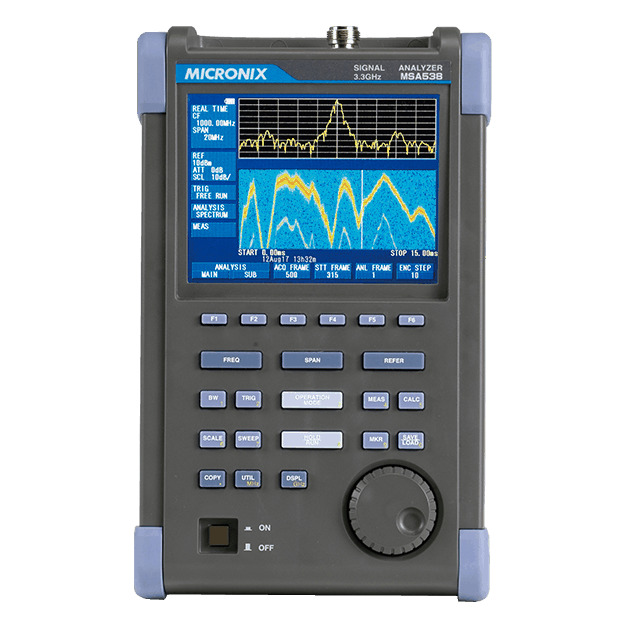

Handheld Signal Analyzer MSA538

The most popular model of the MSA500 series.
Measurement frequency : 20kHz to 3.3GHz

Features

Real time mode In real time system, the spectrum which occurs in an instant won’t be missed. It is optimum for analyzing a noise and a transitional phenomenon.

  • 8 kinds of analyses
    Spectrum, Spectrogram, OverWrite, Time domain analyses(5 kinds)
  • 20MHz SPAN maximum
  • Fast OverWrite analysis of 720 frames/sec
  • Large memory of 16K frames and high speed USB communication of 19ms/sec.
Measurement Frequency20kHz to 3.3GHz
Sweep Mode300Hz RBW minimum
Average Noise Level
  • Average Noise Level:-162dBm/Hz
  • Real Time Mode:-140dBm@cf1GHz,span 20kHz
  • Sweep Mode:-129dBm@cf 1GHz,RBW 300Hz
