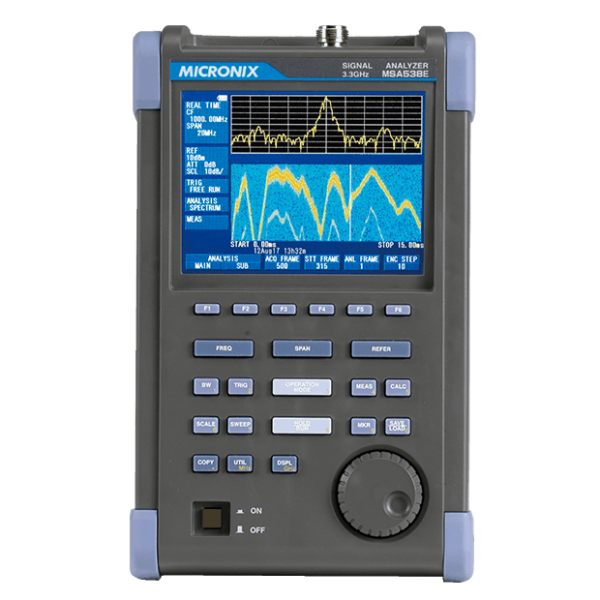

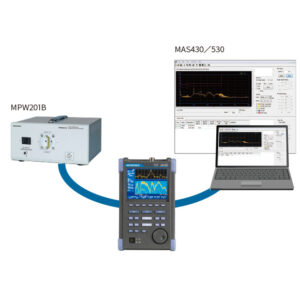

Handheld signal analyzer MSA538E

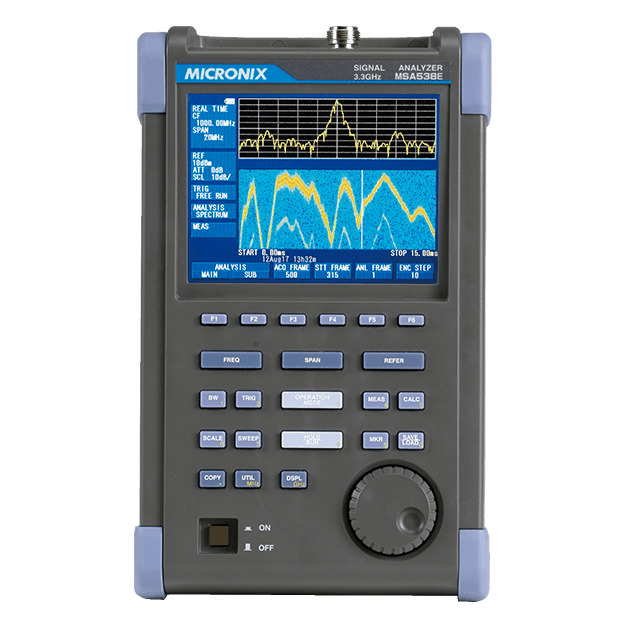

  • Photo:Handheld Signal Analyzer MSA500 Series

    Handheld Signal Analyzer MSA500 Series download

    • The world's first handheld signal analyzer with REAL TIME plus SWEEP system!
    • With Fast Fourier Transform (FFT) and conventional sweep systems, each strong point of both systems is usable.
    • REAL TIME system enables unsteady signal measurement, time domain analysis and modulation analysis. SWEEP system enables measurement by wide span.
    • EMI measurement function is added

Features

  1. Real Time Mode
  2. In real time system, the spectrum which occurs in an instant won't be missed. It is optimum for analyzing a noise and a transitional phenomenon.

    • 8 kinds of analyses
      Spectrum, Spectrogram, OverWrite, Time domain analyses(5 kinds)
    • 20MHz SPAN maximum
    • Fast OverWrite analysis of 720 frames/sec
    • Large memory of 16K frames and high speed USB communication of 19ms/sec.
  3. Measurement Frequency
  4. 20kHz to 3.3GHz

  5. Sweep Mode
  6. 300Hz RBW minimum

  7. Average Noise Level
    • Average Noise Level:-162dBm/Hz
    • Real Time Mode:-140dBm@cf1GHz,span 20kHz
    • Sweep Mode:-129dBm@cf 1GHz,RBW 300Hz
  8. EMI Measurement
  9. Radiated and conducted emission measurement

  10. Detection
  11. PosPK(positive peak), QP(quasi-peak), AV(average)

  12. Resolution bandwidth(6dB)
  13. 9kHz, 120kHz, 1MHz

  14. Measurement of noise on printed circuit board
  15. Magnetic field probe CP-2S is used to measure the noise on a print circuit board connecting to the spectrum analyzer.
