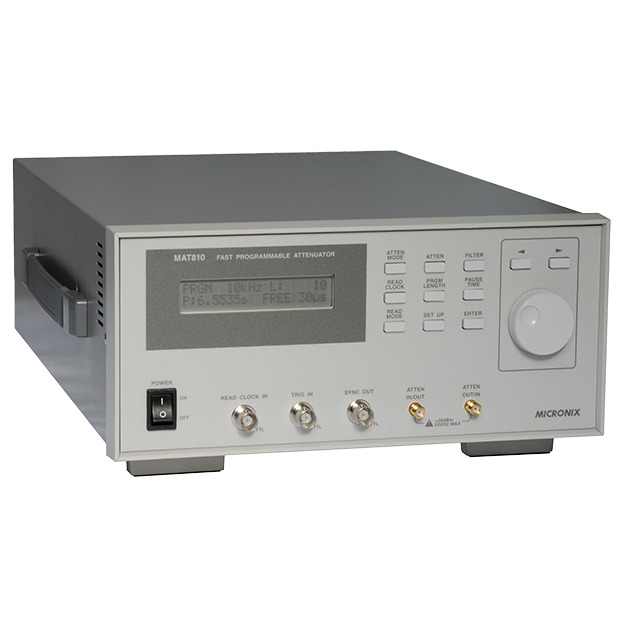

High-Speed Programmable Attenuator MAT810

•



  • There are no chattering and spike at switching moment.
  • The precise simulation of wireless communication is capable by setting the attenuation step small.
  • The frequency band is divided into sixteen and the calibration is done at each frequency so that the frequency characteristics of attenuation is made flat.

• Features
• Specification
• Correspondence table
• Library

Features

1. The frequency range is so wide as 300MHz to 6.6GHz.
2. The arbitrary attenuation programs is possible.
• Two methods are available for setup of attenuation, manual or program.
• 128kwords built-in program memory.
• Maximum 2μs switching (readout) speed.
• Three readout modes of FREE, BURST and GATE.
• Setup of hold off period by the number of clocks or by time.
3. The software for making attenuation program is a standard accessory.

Software for making attenuation program MAS800 (Standard accessory)
• Waveform creation
  The nine types of standard waveforms are prepared like sine wave and triangle wave. A waveform is created by straight line input, arithmetic calculation input(addition, subtraction, clipping, offset and etc), one-point input and freehand line input by a mouse.
• Waveform editing and file management
  Waveform editing and file management may be performed using CUT, COPY, PASTE and UNDO.
4. Maximum Attenuation 60dB
5. The minimum step size of attenuation is 0.05dB.

Specification

Scroll

Model	Frequency range	Attenuation		Input Power (1dB compression)	type
		Maximum	Resolution
MAT810	300MHz to 6.6GHz	60dB	0.05dB	25mW	High-Speed Programmable Attenuator

Correspondence table

Scroll

Application		MAT810
Cellular phone1 (JPN/USA)	W-CDMA
	HSDAPA
	HSPA+
	LTE
Cellular phone2 (JPN/USA)	cdma
	cdma2000
Cellular phone3 (EUR/ASIA)	GSM
	GPRS
	EDGE
	1xEV-D0
PHS (JPN/ASIA)
Wireless LAN	2.4GHz 11/11b/11g/11n
	5GHz 11a/11n
UWB	3.4 to 4.8GHz ＠JPN
	7.25 to 10.25GHz ＠JPN
	3.1 to 10.6GHz ＠USA
Bluetooth
ZigBee
WiMAX・Mobil WiMAX	2.5GHz
	3.5GHz
	5.8GHz
GPS 1.57542GHz
RF-ID	900MHz
	2.5GHz
ETC/DSRC
BS/CS Digital broadcasting	Antenna Reception Frequency 11.72748 to 13GHz
	Converter Intermediate Frequency 1.04 to 2.03GHz ( Output VSWR : less than 2.0 )

High-Speed Programmable Attenuator Library

• Products Catalog
  • High-Speed Programmable Attenuator MAT810 Catalog (PDF)
  • MICRONIX Products DIGEST Catalog (PDF3.75MB)
• Technical report
  • Air simulation for wireless communication. (MAT800/MAT810)
  • Technical data of VSWR and Attenuation.(MAT800)
  • Technical data of VSWR and Attenuation.(MAT810)
  • Technical data of VSWR and Attenuation.(MAT850)
  • The Level correction of MAT800/MAT810 corresponding to several input frequency
